Zen DSP

Unleash your Zen Audio amplifier's ultimate potential using the Zen DSP acoustic calibration tool.

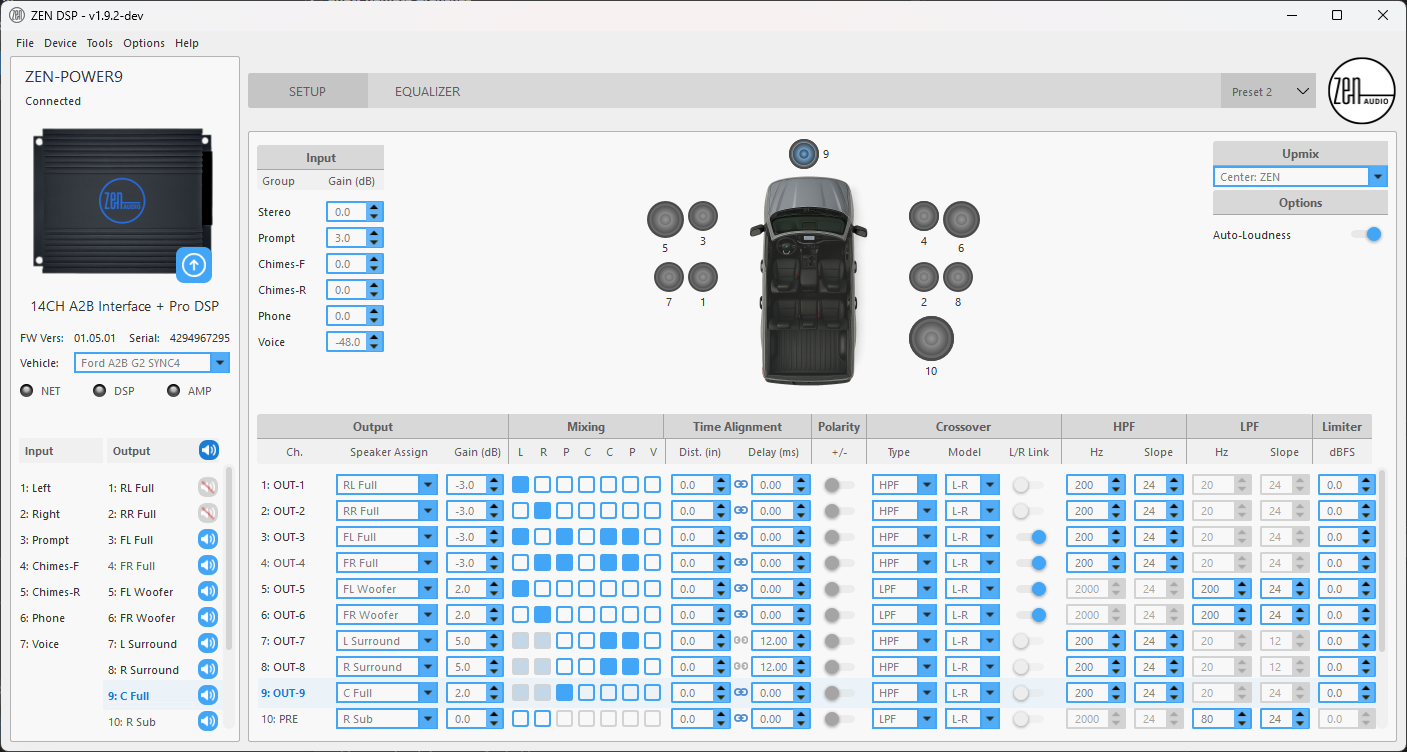

  • ZEN DSP setup and channel routing screen

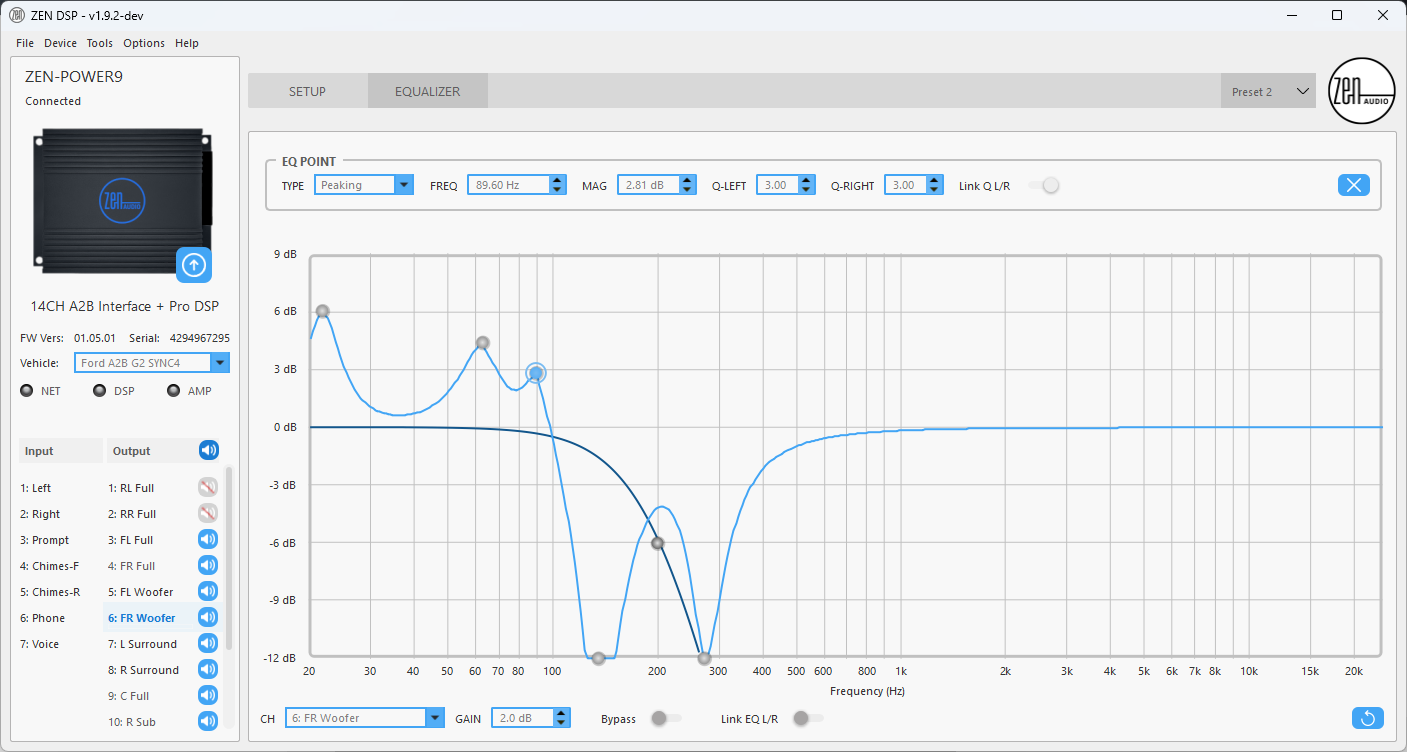

  • ZEN DSP parametric equalizer screen
1 2

FEATURES

  • Per-channel and global 512 point peaking, shelf, and all-pass parametric equalizers.
  • Downloadable preconfigured tunes for supported vehicles.
  •  USB-C connectivity and automatic OTA firmware updates.
  • Digital input signal routing and mapping matrix.
  • Dynamic polarity (phase) inversion.
  • Up to 4 stored tune presets, switchable in-vehicle.
  • Selectable upmix algorithms for center and surround channels.
  • Real-time audio analysis and feedback.
  • Dynamic range compression (DRC) channel limiters.
  • Automatic time alignment calculator to 0.01 ms precision.
  • Low-pass, high-pass, and band-pass active crossover filters (Butterworth, Linkwitz-Riley, Chebyshev).
  • Selectable "Auto-Loudness" levels.

Downloads

  • Zen DSP for Windows

    v1.13.1

    Requirements: Windows 10/11 (x64), 4GB RAM, 100MB disk

    Installation Guide:

    1. Download the file and run the Windows .msi installer.
    2. Ensure that you select to install the drivers when prompted.
    3. To run the application, find the Zen DSP icon on your desktop.
    Download

  • Zen DSP for macOS

    v1.9.6

    Requirements: macOS 10.9 Mavericks or later

    Installation Guide:

    1. Download and open the .dmg package.
    2. Install the file D2xxHelper_v2.0.0.pkg.
    3. Drag Zen DSP into your Applications folder.
    4. To run the application, select Zen DSP from your Applications folder.
    Download

Zen DSP Acoustic Calibration Software

Zen DSP is our software tool that lets you configure, manage, and tune your Zen Audio-enabled sound system. It’s compatible with the Zen POWER9 series of network amplifiers, the Zen A2B+ and F25 network preamps - with more compatible products in development! Best of all, it's free to use!

When you connect your compatible Zen device to your computer, Zen DSP dynamically configures itself based on the device, presenting only the adjustments and options that are relevant to your installation.

For example, when connecting to the Zen POWER9 multichannel amplifier, Zen DSP gives you near-complete control over the system's sound - level, gain, routing and mixing, parametric EQ, polarity, phase-inverting all-pass filters, delay, and crossover filtering are all at your fingertips.

The Zen POWER9 networked amplifier

Zen DSP also includes a powerful global EQ, with just as many filter options as our individual Channel EQs.

The delay section will accept absolute delay in milliseconds, or path-length-difference-driven delay in cm or inches (Zen DSP does the arithmetic for you - just plug in the speaker distances, the software does the rest). If you want to copy a channel EQ settings to another channel, it's easy - just a couple of clicks.

Our "Zen Everywhere" upmixing suite lets you configure any preset with two-seat stereo imaging and dedicated ambiance speaker modes.

However, when connecting to a Zen A2B+ or F25 preamp, these acoustic tuning settings only apply to the Ford head unit’s OEM channels. Zen DSP gives the system tuner access to full DSP control of the ACM channels, allowing integration and alignment of the ACM-powered speakers with the rest of your audio system, even if it uses its own DSP.  Again digital level, crossover filtering, polarity, delay, equalization, and phase-management filtering are all on tap!

The Zen Audio A2B+ Network Preamp

Depending on the frequencies involved, Zen DSP defines both infinite-impulse-response (IIR) and finite-impulse-response (FIR) filters for your EQ settings - minimizing latency while maximizing transparency and filter flexibility. (During phone calls, Zen devices temporarily bypass all processing, to eliminate latency and maximize call quality.)
