The ZEN M650-GM is the most important element in any GM MOST 50 vehicle sound-system upgrade. It has been even been installed in sound-quality competition systems, and won world championships!

The M650-GM provides pure, clean stereo audio - it eliminates all OEM crossover filters, fixed and dynamic EQ, phase manipulation, compression, etc. It is both a high-quality digital-to-analog converter and an audiophile analog preamp - the OEM analog signal path is eliminated. In home-audio terms, the M650-GM is an external D/A converter and an audiophile preamp, connected to the OEM infotainment system with a proprietary digital network. For more on networked preamps, see this Knowledgebase article.

Any Automatic Noise Cancelling systems are automatically disabled (if present), as is any "fake exhaust" note injected into the sound signal.

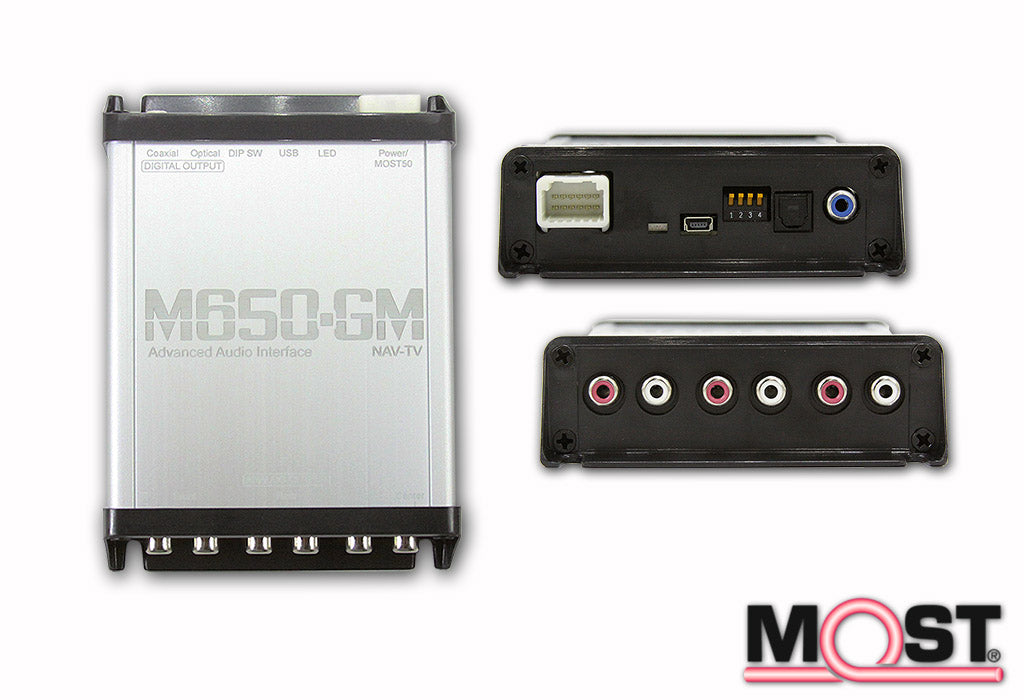

The M650-GM has both high-definition analog RCA and digital SPDIF outputs.

The Zen M650-GM networked preamp is compatible with many GM vehicles with MOST 50 infotainment networks and Bose sound packages (see Vehicle Compatibility below).

INPUT
Digital Input - MOST 50 UTP

OUTPUT
Six analog RCA channels (2.1V RMS)
Front Left/Right
Rear Left/Right
Mono Subwoofer
5.1 Center (optional)
S/N Ratio (analog): 112dB
THD+N @ -1dBFS -93dB

POWER SUPPLY
Current Consumption:
Standby: <1 mA
Operational: 350 mA maximum
Operational Voltage: 7V – 20V DC
Remote Turn On Capacity: 500mA

OTHER
Dimensions (module): 4”x5”x1 3/8”
Weight (module)    10 oz
Country of Origin USA


Note: The vehicle model year is not always the same as the year of the vehicle's date of manufacture. If you are unclear on the official model year, use the official NHTSA VIN lookup tool here.

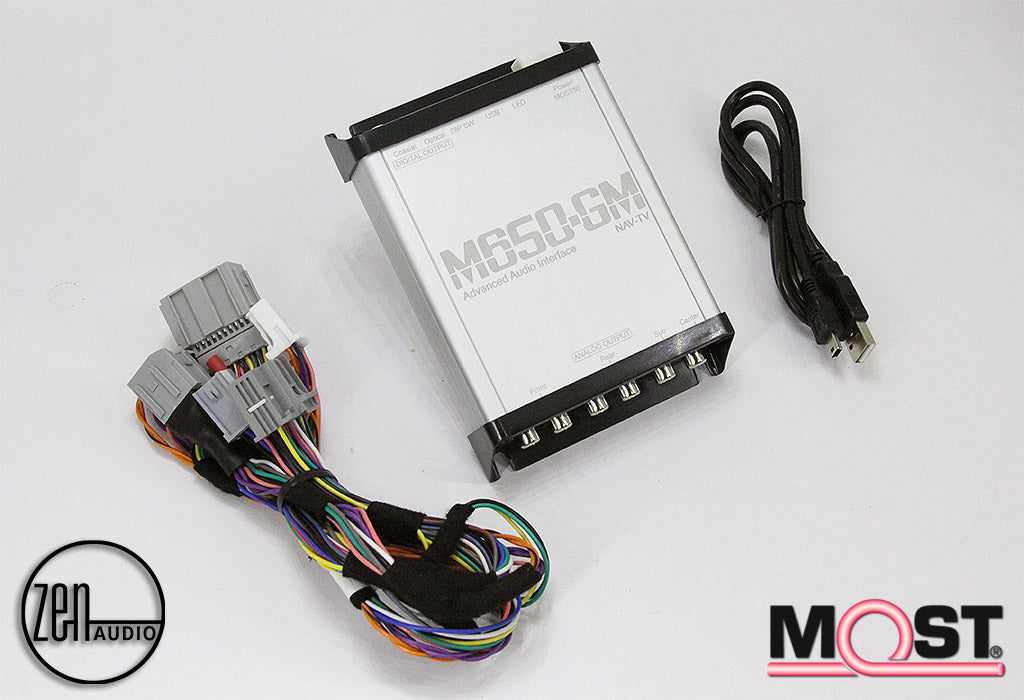

The M650-GM includes the following in the package:

• M650 main module (NTV ASY 264)
• Plug-and-Play Integration T-harness (NTV HAR-310)
• USB A to USB Mini A (NTV CAB009 or equivalent)

Product Manual

Download the product manual here.

Using the M650-GM Preamp

Use Case 1 - Full-Range Analog RCA to Aftermarket Gear


NOTE: RCA #6, 5.1 Center, is only active when playing 5.1 sources with discrete center-channel content in OEM systems which support it. It is NOT a upmixed output!

NOTE: Subwoofer Level can be controlled via the head unit’s bass tone control - see DIP SWITCHES, P. 13 of the manual.

NOTE: The blue wire will output 12V(+) when a door is unlocked or opened.


Use Case 2 - Full-Range Toslink Fiber Optic to Aftermarket Gear

NOTE: Head Unit Front/Rear Fade function and Subwoofer Level from Bass Tone Control function are not available with Toslink outputs.

NOTE: The blue wire will output 12V(+) when a door is unlocked or opened.

Use Case 3 - Full-Range SPDIF Coaxial to Aftermarket Gear

NOTE: Head Unit Front/Rear Fade function and Subwoofer Level from Bass Tone Control function are not available with SPDIF outputs.


NOTE: The blue wire will output 12V(+) when a door is unlocked or opened.

Use Case 4 - Add-A-Sub

NOTE: Subwoofer Level can be controlled via the head unit’s bass tone control - see DIP SWITCHES, P. 13 of the manual.

NOTE: The blue wire will output 12V(+) when a door is unlocked or opened.

How many channels does the Zen M650-GM have?

This network preamp has six analog RCA outputs, one stereo TOSLINK SPDIF output, and one SPDIF coaxial output. The SPDIF outputs require a third-party device with a compatible SPDIF input and D/A conversion.

What makes this preamp sound so good?

Some of that is the Zen Audio network preamp technology (more on that here), and some of it is the audiophile-grade D/A converters and op-amps used in the signal path. This preamp was part of a world-champion award-winning sound system!

Does it work in all GM?

It works in specific GM vehicles that use the MOST 50 infotainment network technology. Please see the Vehicle Compatibility tab for specific coverage information.

See the installation manual for more information.
