The Zen AVB-GM is the most important element in any compatible-vehicle sound-system upgrade.

The Zen AVB-GM provides pure, clean stereo audio - it eliminates all OEM crossover filters, fixed and dynamic EQ, phase manipulation, compression, etc. It is both a high-quality digital-to-analog converter and an audiophile analog preamp - the OEM analog signal path is eliminated. in home audio terms, it is a standalone D/A converter and audiophile preamp, connected to the OEM infotainment system via a proprietary digital network connection. For more information on networked preamps, see this Knowledgebase article.

Any Automatic Noise Cancelling systems are automatically disabled (if present), as is any "fake exhaust" note added to the sound output signal.

The Zen AVB-GM  has both high-quality analog RCA outputs and digital SPDIF outputs.

See Vehicle Compatibility below for application information.

INPUT
Digital Input - automotive Ethernet using AVB protocol

OUTPUT
Six analog RCA channels (6v peak, 2.1V RMS)
Front Left/Right
Rear Left/Right
Mono Subwoofer
5.1/7.1 Center (optional)

Frequency Response 18 hz-24kHz (analog out)
S/N Ratio (analog): 123 dB
THD+N @ -1dBFS -94 dB

POWER SUPPLY
Current Consumption:
Standby: <1 mA
Operational: 350 mA maximum
Operational Voltage: 7V – 20V DC
Remote Turn On Capacity: 500mA

OTHER
Dimensions (module): 4”x5”x1 3/8”
Weight (module)    10 oz
Country of Origin Thailand


Note: The vehicle model year is not always the same as the year of the vehicle's date of manufacture. If you are unclear on the official model year, use the official NHTSA VIN lookup tool here.

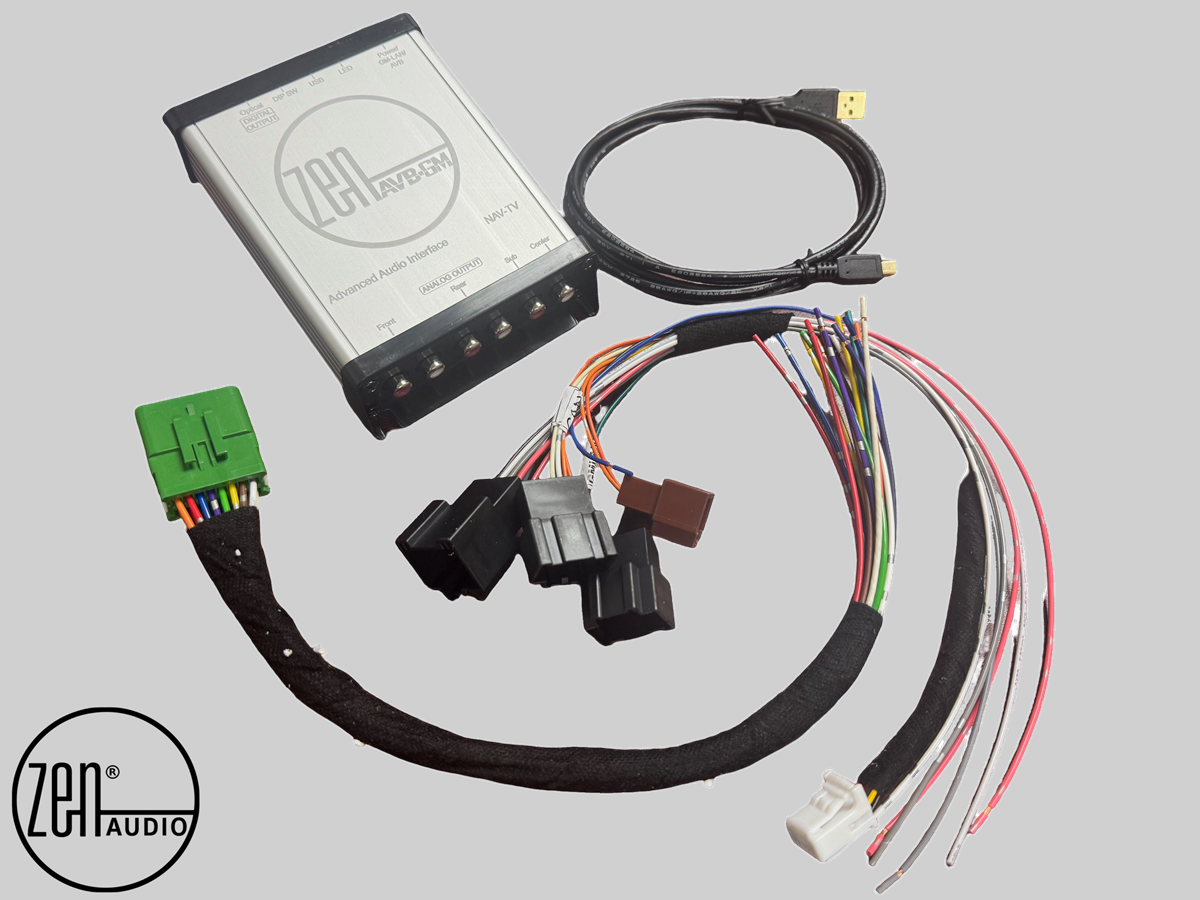

• Zen AVB-GM main module
• Power Harness (NTV-HAR316)
• RCA Output Harness (NTV-HAR315)
• USB A to USB Mini A (NTV CAB-009 or equivalent)

Product Manual

Download the Product Manual here.

How many channels does the Zen AVB-GM have?

This network preamp has six analog RCA outputs, and one stereo TOSLINK SPDIF output. The SPDIF output requires a third-party device with a compatible SPDIF input and D/A conversion.

What makes this preamp sound so good?

Some of that is the Zen Audio network preamp technology (more on that here), and some of it is the audiophile-grade D/A converters and op-amps used in the signal path. T

Does it work in all GM?

It works in specific GM vehicles that use the automotive Ethernet infotainment network technology. Please see the Vehicle Compatibility tab for specific coverage information.

Does it work in my Escalade?

Sorry, no, the Escalade is a unique platform.

See the installation manual for more information.
